DUNE: Uniform Navigational Environment  2017.01.0
List of all members | Public Member Functions | Public Attributes
Monitors::Clock::Task Struct Reference

Public Member Functions

 Task (const std::string &name, Tasks::Context &ctx)

void onResourceInitialization (void)

void consume (const IMC::GpsFix *msg)

void setTime (double new_time)

void onMain (void)

- Public Member Functions inherited from DUNE::Tasks::Task
 Task (const std::string &name, Context &context)

virtual ~Task (void)

const char * getName (void) const

const char * getSystemName (void) const

unsigned int getSystemId (void) const

unsigned int getEntityId (void) const

unsigned int resolveEntity (const std::string &label) const

std::string resolveEntity (unsigned int id) const

DebugLevel getDebugLevel (void) const

uint16_t getActivationTime (void) const

uint16_t getDeactivationTime (void) const

unsigned int resolveSystemName (const std::string &name) const

const char * resolveSystemId (unsigned int id) const

void loadConfig (void)

void setPriority (unsigned int value)

unsigned int getPriority (void) const

void inf (const char *format,...) DUNE_PRINTF_FORMAT(2

void void war (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void err (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void cri (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void debug (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void trace (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void void spew (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void
void void 		dispatch (IMC::Message *msg, unsigned int flags=0)

void dispatch (IMC::Message &msg, unsigned int flags=0)

void dispatchReply (const IMC::Message &original, IMC::Message &msg, unsigned int flags=0)

void receive (const IMC::Message *msg)

void reserveEntities (void)

void resolveEntities (void)

void acquireResources (void)

void releaseResources (void)

void initializeResources (void)

void updateParameters (bool act_deact=true)

void writeParamsXML (std::ostream &os) const

const char * getEntityLabel (void) const

void setEntityLabel (const std::string &label)

- Public Member Functions inherited from DUNE::Tasks::AbstractTask
 AbstractTask (void)

virtual ~AbstractTask (void)

- Public Member Functions inherited from DUNE::Concurrency::Thread
 Thread (void)

virtual ~Thread (void)

int getProcessorUsage (void)

- Public Member Functions inherited from DUNE::Concurrency::Runnable
 Runnable (void)

virtual ~Runnable (void)

void start (void)

void stop (void)

void join (void)

void stopAndJoin (void)

void setPriority (Scheduler::Policy policy, unsigned priority)

unsigned getPriority (void)

State getState (void)

bool isCreated (void)

bool isStopping (void)

bool isRunning (void)

bool isStarting (void)

bool isDead (void)


Public Attributes

MovingAverage< double > m_offs

Arguments m_args

Counter< double > m_sync_deadline

unsigned m_gps_fixes

unsigned m_last_gps_fix_time

IMC::ClockControl m_cc

bool m_clock_synched


Additional Inherited Members

- Public Types inherited from DUNE::Concurrency::Runnable
enum  State {
  StateStarting, StateRunning, StateStopping, StateDead,
  StateUnknown
}

- Protected Member Functions inherited from DUNE::Tasks::Task
void setEntityState (IMC::EntityState::StateEnum state, Status::Code code)

void setEntityState (IMC::EntityState::StateEnum state, const std::string &description)

IMC::EntityState::StateEnum getEntityState (void) const

unsigned int reserveEntity (const std::string &label)

template<typename E >
E * reserveEntity (const std::string &label)

bool stopping (void)

bool isActive (void) const

bool isActivating (void) const

bool isDeactivating (void) const

void waitForMessages (double timeout)

void consumeMessages (void)

template<typename T >
Parameter & param (const std::string &name, T &var)

template<typename Y , typename T >
Parameter & param (const std::string &name, T &var)

template<typename T >
bool paramChanged (T &var)

void paramActive (Parameter::Scope def_scope, Parameter::Visibility def_visibility, bool def_value=false)

void setParamSectionEditor (const std::string &name)

template<typename M , typename T >
void bind (T *task_obj, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< uint32_t > &list)

template<typename T , typename M >
void bind (T *task_obj, const std::vector< uint32_t > &list, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< std::string > &list)

void requestActivation (void)

void requestDeactivation (void)

void activate (void)

void activationFailed (const std::string &reason)

void deactivate (void)

void deactivationFailed (const std::string &reason)

virtual bool onWriteParamsXML (std::ostream &os) const

virtual void onEntityReservation (void)

virtual void onEntityResolution (void)

virtual void onReportEntityState (void)

virtual void onResourceAcquisition (void)

virtual void onResourceRelease (void)

virtual void onUpdateParameters (void)

virtual void onRequestActivation (void)

virtual void onRequestDeactivation (void)

virtual void onActivation (void)

virtual void onDeactivation (void)

virtual void onQueryEntityParameters (const IMC::QueryEntityParameters *msg)

virtual void onSetEntityParameters (const IMC::SetEntityParameters *msg)

virtual void onPushEntityParameters (const IMC::PushEntityParameters *msg)

virtual void onPopEntityParameters (const IMC::PopEntityParameters *msg)

- Protected Member Functions inherited from DUNE::Concurrency::Thread
void startImpl (void)

void stopImpl (void)

void joinImpl (void)

void setPriorityImpl (Scheduler::Policy policy, unsigned priority)

unsigned getPriorityImpl (void)

- Protected Attributes inherited from DUNE::Tasks::Task
Context & m_ctx

std::vector
< Entities::BasicEntity * > 		m_entities


Constructor & Destructor Documentation

Monitors::Clock::Task::Task ( const std::string &  name,
Tasks::Context &  ctx
)
inline

References Monitors::Clock::Arguments::change_log, DUNE::Tasks::Parameter::defaultValue(), DUNE::Tasks::Parameter::description(), Monitors::Clock::Arguments::hw_sync_cmd, m_args, Monitors::Clock::Arguments::max_boot_tout, Monitors::Clock::Arguments::max_clock_offs, Monitors::Clock::Arguments::min_gps_fixes, DUNE::Tasks::Task::param(), DUNE::Tasks::Task::setEntityState(), and DUNE::Tasks::Parameter::units().

Member Function Documentation

void Monitors::Clock::Task::consume ( const IMC::GpsFix *  msg)
inline

References Monitors::Clock::Arguments::change_log, DUNE::Tasks::Task::dispatch(), DUNE::Tasks::Task::getSystemId(), m_args, m_cc, m_clock_synched, m_gps_fixes, m_last_gps_fix_time, m_offs, Monitors::Clock::Arguments::max_clock_offs, Monitors::Clock::Arguments::min_gps_fixes, DUNE::Tasks::Task::setEntityState(), setTime(), DUNE::Math::MovingAverage< T >::update(), and DUNE::Tasks::Task::war().

void Monitors::Clock::Task::onMain ( void  )
inlinevirtual

Implements DUNE::Tasks::Task.

References DUNE::Tasks::Task::getEntityState(), m_sync_deadline, DUNE::Time::Counter< T >::overflow(), DUNE::Tasks::Task::setEntityState(), DUNE::Tasks::Task::stopping(), and DUNE::Tasks::Task::waitForMessages().

void Monitors::Clock::Task::onResourceInitialization ( void  )
inlinevirtual

Called when the task is instructed to initialize resources acquired previously or whose initialization depends on run-time parameters.

Reimplemented from DUNE::Tasks::Task.

References m_args, m_sync_deadline, Monitors::Clock::Arguments::max_boot_tout, and DUNE::Time::Counter< T >::setTop().

void Monitors::Clock::Task::setTime ( double  new_time)
inline

References DUNE::Tasks::Task::dispatch(), DUNE::Tasks::Task::err(), Monitors::Clock::Arguments::hw_sync_cmd, m_args, and m_cc.

Referenced by consume().

Member Data Documentation

Arguments Monitors::Clock::Task::m_args

Task arguments.

Referenced by consume(), onResourceInitialization(), setTime(), and Task().

IMC::ClockControl Monitors::Clock::Task::m_cc

Clock control output message.

Referenced by consume(), and setTime().

bool Monitors::Clock::Task::m_clock_synched

True if clock is synchronized.

Referenced by consume().

unsigned Monitors::Clock::Task::m_gps_fixes

Count of GPS fixes since last sync.

Referenced by consume().

unsigned Monitors::Clock::Task::m_last_gps_fix_time

Time of last GPS fix.

Referenced by consume().

MovingAverage<double> Monitors::Clock::Task::m_offs

Moving average of time difference.

Referenced by consume().

Counter<double> Monitors::Clock::Task::m_sync_deadline

Synchronization deadline.

Referenced by onMain(), and onResourceInitialization().

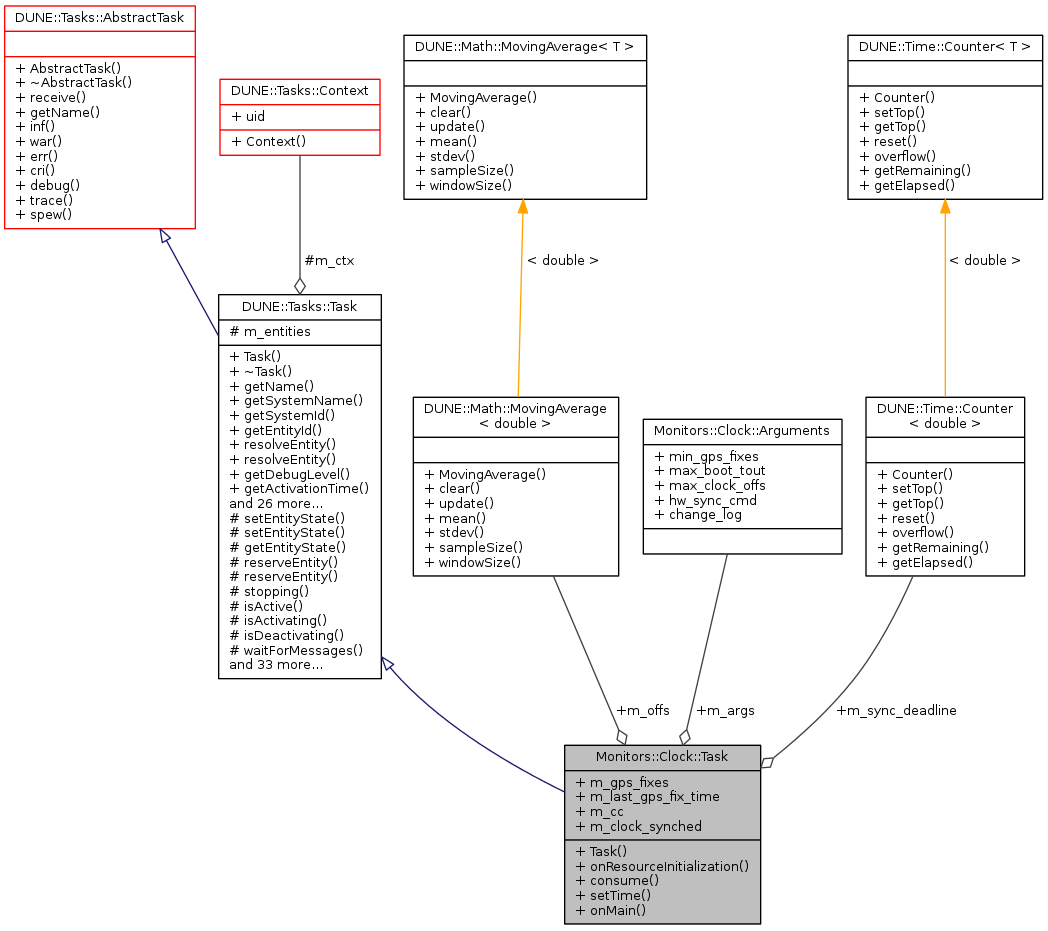

Collaboration diagram for Monitors::Clock::Task:
Collaboration graph
