DUNE::IMC::FormationPlanExecution Class Reference

Detailed Description

Formation Plan Execution.

Public Member Functions
	FormationPlanExecution (void)
FormationPlanExecution *	clone (void) const
void	clear (void)
bool	fieldsEqual (const Message &msg__) const
int	validate (void) const
uint8_t *	serializeFields (uint8_t *bfr__) const
uint16_t	deserializeFields (const uint8_t *bfr__, uint16_t size__)
uint16_t	reverseDeserializeFields (const uint8_t *bfr__, uint16_t size__)
uint16_t	getId (void) const
const char *	getName (void) const
unsigned	getFixedSerializationSize (void) const
unsigned	getVariableSerializationSize (void) const
void	fieldsToJSON (std::ostream &os__, unsigned nindent__) const
Public Member Functions inherited from DUNE::IMC::Message
	Message (void)
virtual	~Message (void)
double	setTimeStamp (double ts)
double	setTimeStamp (void)
double	getTimeStamp (void) const
uint16_t	getSource (void) const
void	setSource (uint16_t src)
uint8_t	getSourceEntity (void) const
void	setSourceEntity (uint8_t src_ent)
uint16_t	getDestination (void) const
void	setDestination (uint16_t dst)
uint8_t	getDestinationEntity (void) const
void	setDestinationEntity (uint8_t dst_ent)
virtual uint16_t	getSubId (void) const
virtual void	setSubId (uint16_t subid)
virtual fp64_t	getValueFP (void) const
virtual void	setValueFP (fp64_t val)
unsigned	getSerializationSize (void) const
unsigned	getPayloadSerializationSize (void) const
void	toJSON (std::ostream &os) const
void	toText (std::ostream &os) const
bool	operator== (const Message &other) const
bool	operator!= (const Message &other) const

Static Public Member Functions
static uint16_t	getIdStatic (void)

Public Attributes
std::string	group_name
std::string	formation_name
std::string	plan_id
std::string	description
fp32_t	leader_speed
fp32_t	leader_bank_lim
fp32_t	pos_sim_err_lim
fp32_t	pos_sim_err_wrn
uint16_t	pos_sim_err_timeout
fp32_t	converg_max
uint16_t	converg_timeout
uint16_t	comms_timeout
fp32_t	turb_lim
std::string	custom

Additional Inherited Members
Protected Member Functions inherited from DUNE::IMC::Message
virtual void	setTimeStampNested (double value)
virtual void	setSourceNested (uint16_t value)
virtual void	setSourceEntityNested (uint8_t value)
virtual void	setDestinationNested (uint16_t value)
virtual void	setDestinationEntityNested (uint8_t value)
Protected Attributes inherited from DUNE::IMC::Message
Header	m_header

Constructor & Destructor Documentation

DUNE::IMC::FormationPlanExecution::FormationPlanExecution

(

void

)

References clear(), DUNE::IMC::Message::m_header, and DUNE::IMC::Header::mgid.

Referenced by clone().

Member Function Documentation

void DUNE::IMC::FormationPlanExecution::clear ( void  )

virtual

Reset message's fields.

Implements DUNE::IMC::Message.

References comms_timeout, converg_max, converg_timeout, custom, description, formation_name, group_name, leader_bank_lim, leader_speed, plan_id, pos_sim_err_lim, pos_sim_err_timeout, pos_sim_err_wrn, and turb_lim.

Referenced by FormationPlanExecution().

FormationPlanExecution* DUNE::IMC::FormationPlanExecution::clone ( void  ) const

inlinevirtual

Retrieve a copy of the message.

Returns

message copy.

Implements DUNE::IMC::Message.

References FormationPlanExecution().

uint16_t DUNE::IMC::FormationPlanExecution::deserializeFields ( const uint8_t *  bfr, uint16_t  len  )

virtual

Deserialize message fields from a packet.

Parameters

bfr	stream of bytes (packet)
len	length of the byte stream.

Returns

number of bytes processed.

Implements DUNE::IMC::Message.

References comms_timeout, converg_max, converg_timeout, custom, description, DUNE::IMC::deserialize(), formation_name, group_name, leader_bank_lim, leader_speed, plan_id, pos_sim_err_lim, pos_sim_err_timeout, pos_sim_err_wrn, and turb_lim.

bool DUNE::IMC::FormationPlanExecution::fieldsEqual ( const Message &  other ) const

virtual

Compare fields for equality.

Parameters

[in]

other

message to compare.

Returns

true if fields are equal, false otherwise.

Reimplemented from DUNE::IMC::Message.

References comms_timeout, converg_max, converg_timeout, custom, description, formation_name, group_name, leader_bank_lim, leader_speed, plan_id, pos_sim_err_lim, pos_sim_err_timeout, pos_sim_err_wrn, and turb_lim.

void DUNE::IMC::FormationPlanExecution::fieldsToJSON ( std::ostream &  os, unsigned  indent_level  ) const

virtual

Output the message fields (excluding header) in JSON format.

Parameters

os	output stream.
indent_level	number of indentation spaces.

Reimplemented from DUNE::IMC::Message.

References comms_timeout, converg_max, converg_timeout, custom, description, formation_name, group_name, leader_bank_lim, leader_speed, plan_id, pos_sim_err_lim, pos_sim_err_timeout, pos_sim_err_wrn, DUNE::IMC::toJSON(), and turb_lim.

unsigned DUNE::IMC::FormationPlanExecution::getFixedSerializationSize ( void  ) const

inlinevirtual

Get the fixed amount of bytes required to properly serialize this message (variable length fields are not included).

Returns

amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

uint16_t DUNE::IMC::FormationPlanExecution::getId ( void  ) const

inlinevirtual

Retrieve message's identification number.

Returns

message's identification number.

Implements DUNE::IMC::Message.

References getIdStatic().

static uint16_t DUNE::IMC::FormationPlanExecution::getIdStatic ( void  )

inlinestatic

Referenced by getId().

const char* DUNE::IMC::FormationPlanExecution::getName ( void  ) const

inlinevirtual

Retrieve message's name.

Returns

message's name.

Implements DUNE::IMC::Message.

unsigned DUNE::IMC::FormationPlanExecution::getVariableSerializationSize ( void  ) const

inlinevirtual

Get the variable amount of bytes required to properly serialize this message (only the variable fields are included).

Returns

amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

References custom, description, formation_name, DUNE::IMC::getSerializationSize(), group_name, and plan_id.

uint16_t DUNE::IMC::FormationPlanExecution::reverseDeserializeFields ( const uint8_t *  bfr, uint16_t  len  )

virtual

Deserialize message fields from a packet, swapping the byte order.

Parameters

bfr	stream of bytes (packet)
len	length of the byte stream.

Returns

number of bytes processed.

Implements DUNE::IMC::Message.

References comms_timeout, converg_max, converg_timeout, custom, description, formation_name, group_name, leader_bank_lim, leader_speed, plan_id, pos_sim_err_lim, pos_sim_err_timeout, pos_sim_err_wrn, DUNE::IMC::reverseDeserialize(), and turb_lim.

uint8_t * DUNE::IMC::FormationPlanExecution::serializeFields ( uint8_t *  bfr__ ) const

virtual

Implements DUNE::IMC::Message.

References comms_timeout, converg_max, converg_timeout, custom, description, formation_name, group_name, leader_bank_lim, leader_speed, plan_id, pos_sim_err_lim, pos_sim_err_timeout, pos_sim_err_wrn, DUNE::IMC::serialize(), and turb_lim.

int DUNE::IMC::FormationPlanExecution::validate ( void  ) const

virtual

Validate the message's contents.

Returns

negative value in case of a valid message or a positive value indicating the position of the invalid message field.

Implements DUNE::IMC::Message.

Member Data Documentation

uint16_t DUNE::IMC::FormationPlanExecution::comms_timeout

Communications time-out.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationPlanExecution::converg_max

Convergence threshold.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

uint16_t DUNE::IMC::FormationPlanExecution::converg_timeout

Convergence time-out.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

std::string DUNE::IMC::FormationPlanExecution::custom

Custom settings for maneuver.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), getVariableSerializationSize(), reverseDeserializeFields(), and serializeFields().

std::string DUNE::IMC::FormationPlanExecution::description

Plan Description.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), getVariableSerializationSize(), reverseDeserializeFields(), and serializeFields().

std::string DUNE::IMC::FormationPlanExecution::formation_name

Formation Name.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), getVariableSerializationSize(), reverseDeserializeFields(), and serializeFields().

std::string DUNE::IMC::FormationPlanExecution::group_name

Target Group Name.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), getVariableSerializationSize(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationPlanExecution::leader_bank_lim

Formation leader flight bank limit.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationPlanExecution::leader_speed

Formation Leader Flight Airspeed.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

std::string DUNE::IMC::FormationPlanExecution::plan_id

Formation Plan ID.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), getVariableSerializationSize(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationPlanExecution::pos_sim_err_lim

Position mismatch limit.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

uint16_t DUNE::IMC::FormationPlanExecution::pos_sim_err_timeout

Position mismatch time-out.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationPlanExecution::pos_sim_err_wrn

Position mismatch threshold.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationPlanExecution::turb_lim

Turbulence limit.

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

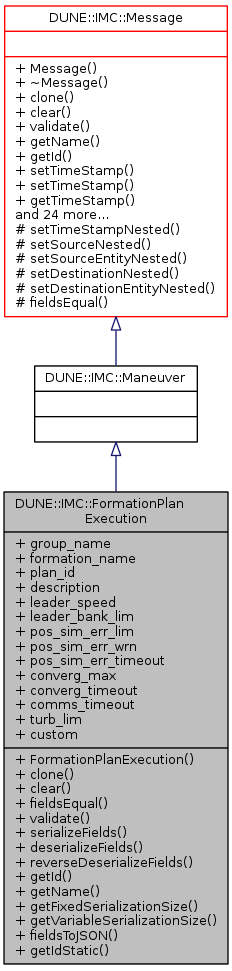

Collaboration diagram for DUNE::IMC::FormationPlanExecution:
