Vision::UI2210MGL::Arguments Struct Reference

Detailed Description

Task arguments.

Public Attributes
unsigned	fps
unsigned	quality
std::string	log_dir
AOI	aoi
bool	auto_gain
int	gain
float	exposure
double	c1
double	c2
double	c3
float	wlen
bool	calib_mode
float	calib_delta

Member Data Documentation

aoi

AOI Vision::UI2210MGL::Arguments::aoi

Area of Interest specification.

Referenced by Vision::UI2210MGL::Task::onResourceAcquisition(), Vision::UI2210MGL::Task::onUpdateParameters(), Vision::UI2210MGL::Task::saveImage(), and Vision::UI2210MGL::Task::Task().

auto_gain

bool Vision::UI2210MGL::Arguments::auto_gain

Auto Gain.

Referenced by Vision::UI2210MGL::Task::onResourceAcquisition(), Vision::UI2210MGL::Task::onUpdateParameters(), and Vision::UI2210MGL::Task::Task().

c1

double Vision::UI2210MGL::Arguments::c1

Calibration parameters.

Referenced by Vision::UI2210MGL::Task::pixel2wlen(), Vision::UI2210MGL::Task::Task(), and Vision::UI2210MGL::Task::wlen2pixel().

c2

double Vision::UI2210MGL::Arguments::c2

Referenced by Vision::UI2210MGL::Task::pixel2wlen(), Vision::UI2210MGL::Task::Task(), and Vision::UI2210MGL::Task::wlen2pixel().

c3

double Vision::UI2210MGL::Arguments::c3

Referenced by Vision::UI2210MGL::Task::pixel2wlen(), Vision::UI2210MGL::Task::Task(), and Vision::UI2210MGL::Task::wlen2pixel().

calib_delta

float Vision::UI2210MGL::Arguments::calib_delta

Calibration delta.

Referenced by Vision::UI2210MGL::Task::onMain(), and Vision::UI2210MGL::Task::Task().

calib_mode

bool Vision::UI2210MGL::Arguments::calib_mode

Calibration mode.

Referenced by Vision::UI2210MGL::Task::onMain(), and Vision::UI2210MGL::Task::Task().

exposure

float Vision::UI2210MGL::Arguments::exposure

Exposure time.

Referenced by Vision::UI2210MGL::Task::onResourceAcquisition(), Vision::UI2210MGL::Task::onUpdateParameters(), and Vision::UI2210MGL::Task::Task().

fps

unsigned Vision::UI2210MGL::Arguments::fps

Frames Per Second.

Referenced by Vision::UI2210MGL::Task::onResourceAcquisition(), Vision::UI2210MGL::Task::onUpdateParameters(), and Vision::UI2210MGL::Task::Task().

gain

int Vision::UI2210MGL::Arguments::gain

Gain.

Referenced by Vision::UI2210MGL::Task::onResourceAcquisition(), Vision::UI2210MGL::Task::onUpdateParameters(), and Vision::UI2210MGL::Task::Task().

log_dir

std::string Vision::UI2210MGL::Arguments::log_dir

Path to log directory.

Referenced by Vision::UI2210MGL::Task::consume(), Vision::UI2210MGL::Task::onUpdateParameters(), and Vision::UI2210MGL::Task::Task().

quality

unsigned Vision::UI2210MGL::Arguments::quality

Compression quality.

Referenced by Vision::UI2210MGL::Task::Task().

wlen

float Vision::UI2210MGL::Arguments::wlen

Wavelength to send.

Referenced by Vision::UI2210MGL::Task::Task().

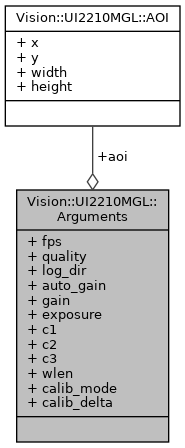

Collaboration diagram for Vision::UI2210MGL::Arguments:
