DUNE: Uniform Navigational Environment  2.5.1
Sensors::OS4000::Task Struct Reference

Public Member Functions

 Task (const std::string &name, Tasks::Context &ctx)

void onResourceRelease (void)

void onResourceAcquisition (void)

void onResourceInitialization (void)

void onUpdateParameters (void)

int readString (void)

bool setParameter (const char *command, const char *label, int value)

void changeCalibrationState (CalibrationStates state)

void consume (const IMC::DevCalibrationControl *msg)

void calibrating (void)

void terminateCalibration (void)

void onMain (void)

- Public Member Functions inherited from DUNE::Tasks::Task
 Task (const std::string &name, Context &context)

virtual ~Task (void)

const char * getName (void) const

const char * getSystemName (void) const

unsigned int getSystemId (void) const

unsigned int getEntityId (void) const

uint16_t getActivationTime (void) const

uint16_t getDeactivationTime (void) const

unsigned int resolveSystemName (const std::string &name) const

const char * resolveSystemId (unsigned int id) const

void loadConfig (void)

void setPriority (unsigned int value)

unsigned int getPriority (void) const

void inf (const char *format,...) DUNE_PRINTF_FORMAT(2

void void war (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void err (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void cri (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void debug (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void trace (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void void spew (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void
void void
dispatch (IMC::Message *msg, unsigned int flags=0)

void dispatch (IMC::Message &msg, unsigned int flags=0)

void dispatchReply (const IMC::Message &original, IMC::Message &msg, unsigned int flags=0)

void receive (const IMC::Message *msg)

void reserveEntities (void)

void resolveEntities (void)

void acquireResources (void)

void releaseResources (void)

void initializeResources (void)

void updateParameters (bool act_deact=true)

void writeParamsXML (std::ostream &os) const

- Public Member Functions inherited from DUNE::Tasks::AbstractTask
 AbstractTask (void)

virtual ~AbstractTask (void)

- Public Member Functions inherited from DUNE::Concurrency::Thread
 Thread (void)

virtual ~Thread (void)

int getProcessorUsage (void)

- Public Member Functions inherited from DUNE::Concurrency::Runnable
 Runnable (void)

virtual ~Runnable (void)

void start (void)

void stop (void)

void join (void)

void stopAndJoin (void)

void setPriority (Scheduler::Policy policy, unsigned priority)

State getState (void)

bool isCreated (void)

bool isStopping (void)

bool isRunning (void)

bool isStarting (void)

bool isDead (void)


Public Attributes

SerialPort * m_uart

IMC::EulerAngles m_euler

IMC::MagneticField m_mag

IMC::Acceleration m_accel

IMC::Temperature m_temp

IMC::DevCalibrationState m_states [STA_MAX]

CalibrationStates m_state

int m_accumulator

char m_bfr [c_bfr_size]

double m_tstamp

Arguments m_args

Counter< double > m_wdog


Static Public Attributes

static const unsigned c_bfr_size


Additional Inherited Members

- Public Types inherited from DUNE::Concurrency::Runnable
enum  State {
  StateStarting, StateRunning, StateStopping, StateDead,
  StateUnknown
}

- Protected Member Functions inherited from DUNE::Tasks::Task
const char * getEntityLabel (void) const

void setEntityLabel (const std::string &label)

void setEntityState (IMC::EntityState::StateEnum state, Status::Code code)

void setEntityState (IMC::EntityState::StateEnum state, const std::string &description)

IMC::EntityState::StateEnum getEntityState (void) const

unsigned int reserveEntity (const std::string &label)

unsigned int resolveEntity (const std::string &label) const

std::string resolveEntity (unsigned int id) const

bool stopping (void)

bool isActive (void) const

void waitForMessages (double timeout)

void consumeMessages (void)

template<typename T >
Parameterparam (const std::string &name, T &var)

template<typename Y , typename T >
Parameterparam (const std::string &name, T &var)

template<typename T >
bool paramChanged (T &var)

void paramActive (Parameter::Scope def_scope, Parameter::Visibility def_visibility, bool def_value=false)

void setParamSectionEditor (const std::string &name)

template<typename M , typename T >
void bind (T *task_obj, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< uint32_t > &list)

template<typename T >
void bind (T *task_obj, const std::vector< std::string > &list)

void requestActivation (void)

void requestDeactivation (void)

void activate (void)

void activationFailed (const std::string &reason)

void deactivate (void)

void deactivationFailed (const std::string &reason)

virtual void onEntityReservation (void)

virtual void onEntityResolution (void)

virtual void onReportEntityState (void)

virtual void onRequestActivation (void)

virtual void onRequestDeactivation (void)

virtual void onActivation (void)

virtual void onDeactivation (void)

- Protected Member Functions inherited from DUNE::Concurrency::Thread
void startImpl (void)

void stopImpl (void)

void joinImpl (void)

void setPriorityImpl (Scheduler::Policy policy, unsigned priority)

- Protected Attributes inherited from DUNE::Tasks::Task
Contextm_ctx


Constructor & Destructor Documentation

Member Function Documentation

void Sensors::OS4000::Task::changeCalibrationState ( CalibrationStates  state)
inline

Change calibration state.

Parameters
[in]statecalibration state.

References DUNE::Tasks::Task::debug(), DUNE::Tasks::Task::dispatch(), m_state, and m_states.

Referenced by calibrating(), and consume().

void Sensors::OS4000::Task::onResourceAcquisition ( void  )
inlinevirtual
void Sensors::OS4000::Task::onResourceInitialization ( void  )
inlinevirtual
void Sensors::OS4000::Task::onResourceRelease ( void  )
inlinevirtual

Release allocated resources.

Reimplemented from DUNE::Tasks::Task.

References m_uart.

void Sensors::OS4000::Task::onUpdateParameters ( void  )
inlinevirtual

Update Task parameters.

Reimplemented from DUNE::Tasks::Task.

References Sensors::OS4000::Arguments::data_tout, m_args, m_wdog, and DUNE::Time::Counter< T >::setTop().

int Sensors::OS4000::Task::readString ( void  )
inline

Read a string from the serial port,.

Returns
amount of bytes actually read.

References c_bfr_size, DUNE::Tasks::Task::consumeMessages(), m_bfr, and m_uart.

Referenced by onMain(), and setParameter().

bool Sensors::OS4000::Task::setParameter ( const char *  command,
const char *  label,
int  value
)
inline

Define a given parameter in the device.

Parameters
[in]commandinput command.
[in]labellabel of the parameter.
[in]valuevalue of the parameter.
Returns
true if successful, false otherwise.

References DUNE::Tasks::Task::debug(), m_bfr, m_uart, readString(), and DUNE::Tasks::Task::stopping().

Referenced by onResourceInitialization().

void Sensors::OS4000::Task::terminateCalibration ( void  )
inline

Member Data Documentation

const unsigned Sensors::OS4000::Task::c_bfr_size
static

Internal read buffer.

Referenced by readString().

IMC::Acceleration Sensors::OS4000::Task::m_accel

Acceleration message.

Referenced by onMain().

int Sensors::OS4000::Task::m_accumulator

Calibration characters accumulator.

Referenced by calibrating(), onResourceInitialization(), and terminateCalibration().

Arguments Sensors::OS4000::Task::m_args
char Sensors::OS4000::Task::m_bfr[c_bfr_size]

Internal read buffer.

Referenced by onMain(), readString(), and setParameter().

IMC::EulerAngles Sensors::OS4000::Task::m_euler

Euler angles message.

Referenced by onMain().

IMC::MagneticField Sensors::OS4000::Task::m_mag

Magnetic field message.

Referenced by onMain().

CalibrationStates Sensors::OS4000::Task::m_state

Calibration states.

Referenced by changeCalibrationState(), consume(), onMain(), and onResourceInitialization().

IMC::DevCalibrationState Sensors::OS4000::Task::m_states[STA_MAX]

Device Calibration State message.

Referenced by changeCalibrationState(), onMain(), and Task().

IMC::Temperature Sensors::OS4000::Task::m_temp

Temperature.

Referenced by onMain().

double Sensors::OS4000::Task::m_tstamp

Read timestamp.

SerialPort* Sensors::OS4000::Task::m_uart
Counter<double> Sensors::OS4000::Task::m_wdog

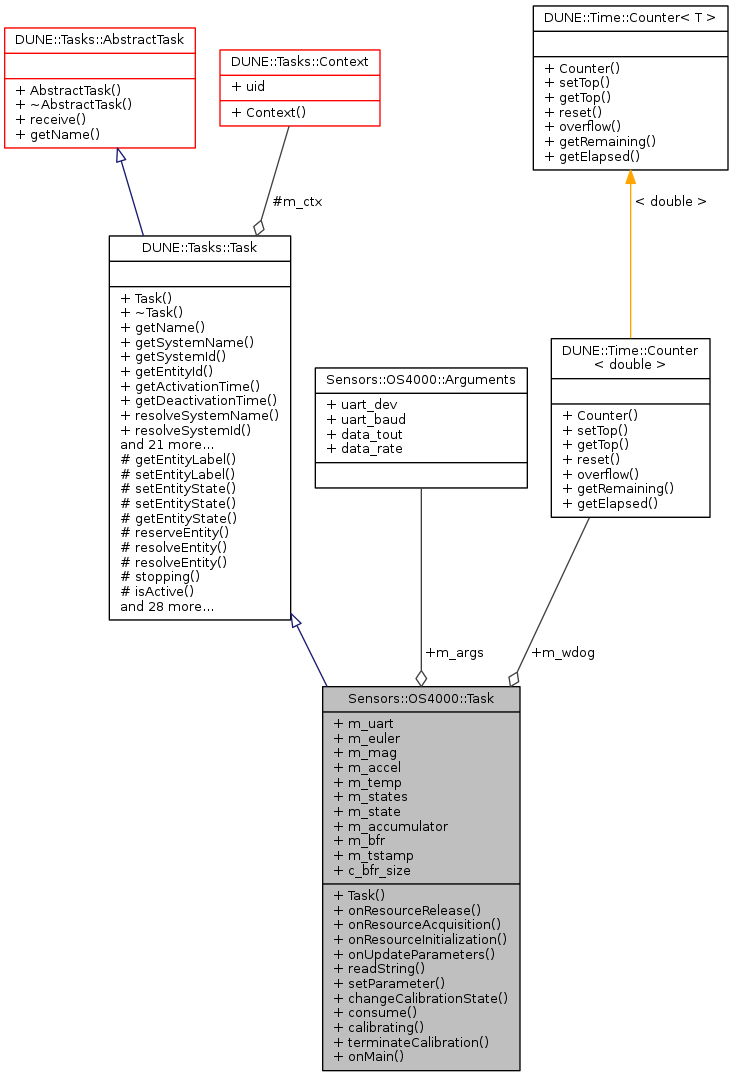

Collaboration diagram for Sensors::OS4000::Task:
Collaboration graph
