Detailed Description

Distance.

Public Types
enum	ValidityEnum { DV_INVALID, DV_VALID }

Public Member Functions
	Distance (void)

Message *	clone (void) const

void	clear (void)

bool	fieldsEqual (const Message &msg__) const

int	validate (void) const

uint8_t *	serializeFields (uint8_t *bfr__) const

uint16_t	deserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t	reverseDeserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t	getId (void) const

const char *	getName (void) const

unsigned	getFixedSerializationSize (void) const

unsigned	getVariableSerializationSize (void) const

fp64_t	getValueFP (void) const

void	setValueFP (fp64_t val)

void	fieldsToJSON (std::ostream &os__, unsigned nindent__) const

Public Member Functions inherited from DUNE::IMC::Message
	Message (void)

virtual	~Message (void)

double	setTimeStamp (double ts)

double	setTimeStamp (void)

double	getTimeStamp (void) const

uint16_t	getSource (void) const

void	setSource (uint16_t src)

uint8_t	getSourceEntity (void) const

void	setSourceEntity (uint8_t src_ent)

uint16_t	getDestination (void) const

void	setDestination (uint16_t dst)

uint8_t	getDestinationEntity (void) const

void	setDestinationEntity (uint8_t dst_ent)

virtual uint16_t	getSubId (void) const

virtual void	setSubId (uint16_t subid)

unsigned	getSerializationSize (void) const

unsigned	getPayloadSerializationSize (void) const

void	toJSON (std::ostream &os) const

void	toText (std::ostream &os) const

bool	operator== (const Message &other) const

bool	operator!= (const Message &other) const

Static Public Member Functions
static uint16_t	getIdStatic (void)

Public Attributes
uint8_t	validity

MessageList< DeviceState >	location

MessageList< BeamConfig >	beam_config

fp32_t	value

Protected Member Functions
void	setTimeStampNested (double value__)

void	setSourceNested (uint16_t value__)

void	setSourceEntityNested (uint8_t value__)

void	setDestinationNested (uint16_t value__)

void	setDestinationEntityNested (uint8_t value__)

Additional Inherited Members
Protected Attributes inherited from DUNE::IMC::Message
Header	m_header

Member Enumeration Documentation

enum DUNE::IMC::Distance::ValidityEnum

Validity.

Enumerator
DV_INVALID	Invalid.
DV_VALID	Valid.

Constructor & Destructor Documentation

DUNE::IMC::Distance::Distance ( void )

References beam_config, clear(), location, DUNE::IMC::Message::m_header, and DUNE::IMC::Header::mgid.

Referenced by clone().

Member Function Documentation

void DUNE::IMC::Distance::clear ( void )

virtual

Reset message's fields.

Implements DUNE::IMC::Message.

References beam_config, location, validity, and value.

Referenced by Distance().

Message* DUNE::IMC::Distance::clone ( void ) const

inlinevirtual

Retrieve a copy of the message.

Returns: message copy.

Implements DUNE::IMC::Message.

References Distance().

uint16_t DUNE::IMC::Distance::deserializeFields	(	const uint8_t *	bfr,
		uint16_t	len
	)

virtual

Deserialize message fields from a packet.

Parameters

bfr	stream of bytes (packet)
len	length of the byte stream.

Returns: number of bytes processed.

Implements DUNE::IMC::Message.

References beam_config, DUNE::IMC::deserialize(), location, validity, and value.

bool DUNE::IMC::Distance::fieldsEqual ( const Message & other ) const

virtual

Compare fields for equality.

Parameters

[in] other message to compare.

Returns: true if fields are equal, false otherwise.

Reimplemented from DUNE::IMC::Message.

References beam_config, location, validity, and value.

void DUNE::IMC::Distance::fieldsToJSON	(	std::ostream &	os,
		unsigned	indent_level
	)		const

virtual

Output the message fields (excluding header) in JSON format.

Parameters

os	output stream.
indent_level	number of indentation spaces.

Reimplemented from DUNE::IMC::Message.

References beam_config, location, DUNE::IMC::toJSON(), validity, and value.

unsigned DUNE::IMC::Distance::getFixedSerializationSize ( void ) const

inlinevirtual

Get the fixed amount of bytes required to properly serialize this message (variable length fields are not included).

Returns: amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

uint16_t DUNE::IMC::Distance::getId ( void ) const

inlinevirtual

Retrieve message's identification number.

Returns: message's identification number.

Implements DUNE::IMC::Message.

References getIdStatic().

static uint16_t DUNE::IMC::Distance::getIdStatic ( void )

inlinestatic

Referenced by getId().

const char* DUNE::IMC::Distance::getName ( void ) const

inlinevirtual

Retrieve message's name.

Returns: message's name.

Implements DUNE::IMC::Message.

fp64_t DUNE::IMC::Distance::getValueFP ( void ) const

virtual

Get the field 'value' on messages containing a field with such an abbreviation with floating point type.

Returns: value of field 'value', 0.0 otherwise.

Reimplemented from DUNE::IMC::Message.

References value.

unsigned DUNE::IMC::Distance::getVariableSerializationSize ( void ) const

inlinevirtual

Get the variable amount of bytes required to properly serialize this message (only the variable fields are included).

Returns: amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

References beam_config, and location.

uint16_t DUNE::IMC::Distance::reverseDeserializeFields	(	const uint8_t *	bfr,
		uint16_t	len
	)

virtual

Deserialize message fields from a packet, swapping the byte order.

Parameters

bfr	stream of bytes (packet)
len	length of the byte stream.

Returns: number of bytes processed.

Implements DUNE::IMC::Message.

References beam_config, DUNE::IMC::deserialize(), location, DUNE::IMC::reverseDeserialize(), validity, and value.

uint8_t * DUNE::IMC::Distance::serializeFields ( uint8_t * bfr__ ) const

virtual

Implements DUNE::IMC::Message.

References beam_config, location, DUNE::IMC::serialize(), validity, and value.

void DUNE::IMC::Distance::setDestinationEntityNested ( uint8_t value )

protectedvirtual

Set the destination entity of nested messages.

Parameters

[in] value destination entity.

Reimplemented from DUNE::IMC::Message.

References beam_config, and location.

void DUNE::IMC::Distance::setDestinationNested ( uint16_t value )

protectedvirtual

Set the destination address of nested messages.

Parameters

[in] value destination address.

Reimplemented from DUNE::IMC::Message.

References beam_config, and location.

void DUNE::IMC::Distance::setSourceEntityNested ( uint8_t value )

protectedvirtual

Set the source entity of nested messages.

Parameters

[in] value source entity.

Reimplemented from DUNE::IMC::Message.

References beam_config, and location.

void DUNE::IMC::Distance::setSourceNested ( uint16_t value )

protectedvirtual

Set the source address of nested messages.

Parameters

[in] value source address.

Reimplemented from DUNE::IMC::Message.

References beam_config, and location.

void DUNE::IMC::Distance::setTimeStampNested ( double value )

protectedvirtual

Set the timestamp of nested messages.

Parameters

[in] value timestamp.

Reimplemented from DUNE::IMC::Message.

References beam_config, and location.

void DUNE::IMC::Distance::setValueFP ( fp64_t val )

virtual

Set the field 'value' on messages containing a field with such an abbreviation with floating point type.

Parameters

val	desired value.

Reimplemented from DUNE::IMC::Message.

References value.

int DUNE::IMC::Distance::validate ( void ) const

virtual

Validate the message's contents.

Returns: negative value in case of a valid message or a positive value indicating the position of the invalid message field.

Implements DUNE::IMC::Message.

Member Data Documentation

MessageList<BeamConfig> DUNE::IMC::Distance::beam_config

Beam Configuration.

Referenced by clear(), deserializeFields(), Distance(), fieldsEqual(), fieldsToJSON(), getVariableSerializationSize(), DUNE::Control::SlopeData::onDistance(), reverseDeserializeFields(), serializeFields(), setDestinationEntityNested(), setDestinationNested(), setSourceEntityNested(), setSourceNested(), and setTimeStampNested().

MessageList<DeviceState> DUNE::IMC::Distance::location

Location.

Referenced by clear(), deserializeFields(), Distance(), fieldsEqual(), fieldsToJSON(), getVariableSerializationSize(), DUNE::Control::SlopeData::onDistance(), reverseDeserializeFields(), serializeFields(), setDestinationEntityNested(), setDestinationNested(), setSourceEntityNested(), setSourceNested(), and setTimeStampNested().

uint8_t DUNE::IMC::Distance::validity

Validity.

Referenced by clear(), DUNE::Navigation::BasicNavigation::consume(), deserializeFields(), fieldsEqual(), fieldsToJSON(), DUNE::Control::SlopeData::onDistance(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::Distance::value

Measured Distance.

Referenced by clear(), DUNE::Navigation::BasicNavigation::consume(), deserializeFields(), fieldsEqual(), fieldsToJSON(), Sensors::Imagenex852::Task::filterRange(), getValueFP(), DUNE::Control::SlopeData::onDistance(), reverseDeserializeFields(), serializeFields(), setValueFP(), and DUNE::Navigation::BeamFilter::updateBeam().

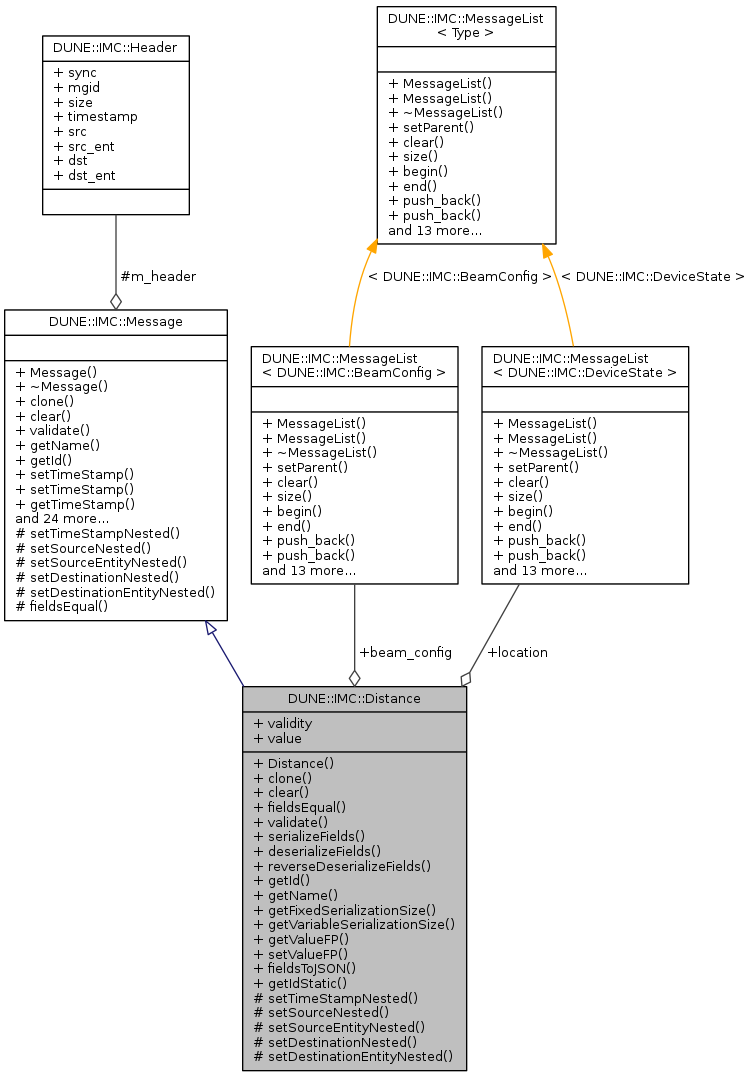

Collaboration diagram for DUNE::IMC::Distance:
