DUNE: Uniform Navigational Environment  2016.09.0
Maneuver::FollowReference::AUV::Task Struct Reference

Public Member Functions

 Task (const std::string &name, Tasks::Context &ctx)

void consume (const IMC::FollowReference *msg)

uint8_t pathDifferences (const IMC::DesiredPath *msg1, const IMC::DesiredPath *msg2)

bool sameReference (const IMC::Reference *msg1, const IMC::Reference *msg2)

void consume (const IMC::Reference *msg)

void consume (const IMC::EstimatedState *msg)

void onPathControlState (const IMC::PathControlState *pcs)

IMC::SpeedUnits parseSpeedUnitsStr (std::string sunits_str)

IMC::ZUnits parseZUnitsStr (std::string zunits_str)

void guide (const IMC::PathControlState *pcs, IMC::Reference *ref, const IMC::EstimatedState *state)

void enableMovement (bool enable)

- Public Member Functions inherited from DUNE::IMC::Message
 Message (void)

virtual ~Message (void)

virtual Messageclone (void) const =0

virtual void clear (void)=0

virtual int validate (void) const =0

virtual const char * getName (void) const =0

virtual uint16_t getId (void) const =0

double setTimeStamp (double ts)

double setTimeStamp (void)

double getTimeStamp (void) const

uint16_t getSource (void) const

void setSource (uint16_t src)

uint8_t getSourceEntity (void) const

void setSourceEntity (uint8_t src_ent)

uint16_t getDestination (void) const

void setDestination (uint16_t dst)

uint8_t getDestinationEntity (void) const

void setDestinationEntity (uint8_t dst_ent)

virtual uint16_t getSubId (void) const

virtual void setSubId (uint16_t subid)

virtual fp64_t getValueFP (void) const

virtual void setValueFP (fp64_t val)

unsigned getSerializationSize (void) const

unsigned getPayloadSerializationSize (void) const

virtual unsigned getFixedSerializationSize (void) const

virtual unsigned getVariableSerializationSize (void) const

void toJSON (std::ostream &os) const

void toText (std::ostream &os) const

virtual uint8_t * serializeFields (uint8_t *bfr) const =0

virtual uint16_t deserializeFields (const uint8_t *bfr, uint16_t len)=0

virtual uint16_t reverseDeserializeFields (const uint8_t *bfr, uint16_t len)=0

virtual void fieldsToJSON (std::ostream &os, unsigned indent_level) const

bool operator== (const Message &other) const

bool operator!= (const Message &other) const


Public Attributes

IMC::FollowReference m_spec

IMC::Reference m_cur_ref

IMC::Reference m_last_ref

IMC::EstimatedState m_estate

IMC::PathControlState m_pcs

IMC::FollowRefState m_fref_state

bool m_got_reference

bool m_moving

double m_last_ref_time

Arguments m_args

IMC::DesiredPath m_last_desired_path

bool m_path_sent


Static Public Attributes

static const uint8_t Z_CHANGED

static const uint8_t SPEED_CHANGED

static const uint8_t LOC_CHANGED

static const uint8_t RADIUS_CHANGED


Additional Inherited Members

- Protected Member Functions inherited from DUNE::IMC::Message
virtual void setTimeStampNested (double value)

virtual void setSourceNested (uint16_t value)

virtual void setSourceEntityNested (uint8_t value)

virtual void setDestinationNested (uint16_t value)

virtual void setDestinationEntityNested (uint8_t value)

virtual bool fieldsEqual (const Message &other) const

- Protected Attributes inherited from DUNE::IMC::Message
Header m_header


Constructor & Destructor Documentation

Member Function Documentation

void Maneuver::FollowReference::AUV::Task::consume ( const IMC::FollowReference *  msg)
inline
void Maneuver::FollowReference::AUV::Task::consume ( const IMC::Reference *  msg)
inline

Consume Reference messages and generate DesiredPath messages accordingly Whenever a new Reference is received from a valid source, a new desired_path gets commanded to the vehicle.

See Also
https://!whale.fe.up.pt/imc/doc/trunk/Maneuvering.html#follow-reference-maneuver
Parameters
msgthe Reference message to be processed

References guide(), m_cur_ref, m_estate, m_fref_state, m_got_reference, m_last_ref, m_last_ref_time, m_pcs, and m_spec.

void Maneuver::FollowReference::AUV::Task::consume ( const IMC::EstimatedState *  msg)
inline
void Maneuver::FollowReference::AUV::Task::enableMovement ( bool  enable)
inline

Function for enabling and disabling the control loops.

References m_last_desired_path, m_moving, and m_path_sent.

void Maneuver::FollowReference::AUV::Task::guide ( const IMC::PathControlState *  pcs,
IMC::Reference *  ref,
const IMC::EstimatedState *  state
)
inline
void Maneuver::FollowReference::AUV::Task::onPathControlState ( const IMC::PathControlState *  pcs)
inline

References m_pcs.

IMC::SpeedUnits Maneuver::FollowReference::AUV::Task::parseSpeedUnitsStr ( std::string  sunits_str)
inline
IMC::ZUnits Maneuver::FollowReference::AUV::Task::parseZUnitsStr ( std::string  zunits_str)
inline
uint8_t Maneuver::FollowReference::AUV::Task::pathDifferences ( const IMC::DesiredPath *  msg1,
const IMC::DesiredPath *  msg2
)
inline
bool Maneuver::FollowReference::AUV::Task::sameReference ( const IMC::Reference *  msg1,
const IMC::Reference *  msg2
)
inline

Referenced by guide().

Member Data Documentation

const uint8_t Maneuver::FollowReference::AUV::Task::LOC_CHANGED
static

Referenced by pathDifferences().

Arguments Maneuver::FollowReference::AUV::Task::m_args

Task arguments.

Referenced by guide(), and Task().

IMC::Reference Maneuver::FollowReference::AUV::Task::m_cur_ref

Store latest received reference.

Referenced by consume().

IMC::EstimatedState Maneuver::FollowReference::AUV::Task::m_estate

Estimated state.

Referenced by consume().

IMC::FollowRefState Maneuver::FollowReference::AUV::Task::m_fref_state

FollowRefState.

Referenced by consume(), and guide().

bool Maneuver::FollowReference::AUV::Task::m_got_reference

Did we get a reference already?

Referenced by consume(), and Task().

IMC::DesiredPath Maneuver::FollowReference::AUV::Task::m_last_desired_path

Referenced by consume(), and enableMovement().

IMC::Reference Maneuver::FollowReference::AUV::Task::m_last_ref

Referenced by consume(), and guide().

double Maneuver::FollowReference::AUV::Task::m_last_ref_time

Store last timestamp when reference was received.

Referenced by consume(), and Task().

bool Maneuver::FollowReference::AUV::Task::m_moving

Are we moving or idle (floating)

Referenced by consume(), enableMovement(), and Task().

bool Maneuver::FollowReference::AUV::Task::m_path_sent

Referenced by consume(), enableMovement(), and Task().

IMC::PathControlState Maneuver::FollowReference::AUV::Task::m_pcs

Path Control state.

Referenced by consume(), and onPathControlState().

IMC::FollowReference Maneuver::FollowReference::AUV::Task::m_spec

Store maneuver specification.

Referenced by consume().

const uint8_t Maneuver::FollowReference::AUV::Task::RADIUS_CHANGED
static

Referenced by pathDifferences().

const uint8_t Maneuver::FollowReference::AUV::Task::SPEED_CHANGED
static

Referenced by pathDifferences().

const uint8_t Maneuver::FollowReference::AUV::Task::Z_CHANGED
static

Referenced by pathDifferences().

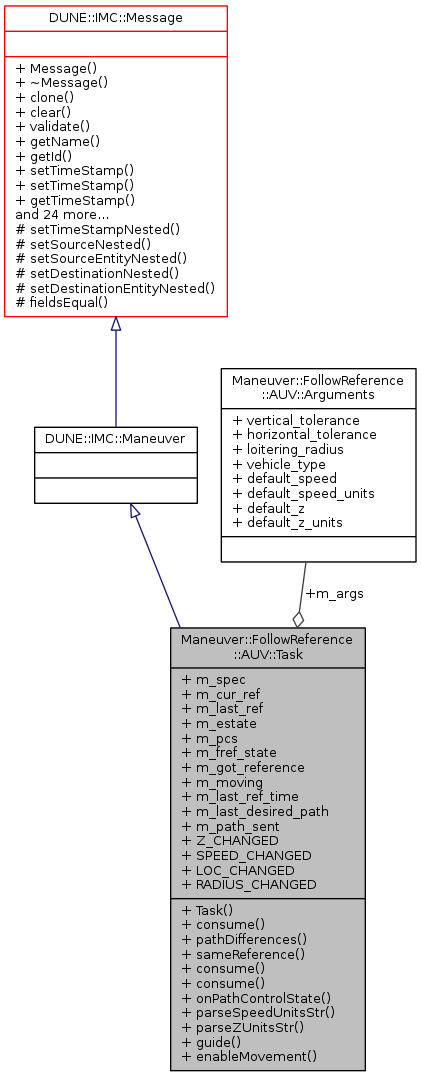

Collaboration diagram for Maneuver::FollowReference::AUV::Task:
Collaboration graph
