Control::AUV::LMI::Task Struct Reference

Public Member Functions

 Task (const std::string &name, Tasks::Context &ctx)

void onResourceInitialization (void)

void onUpdateParameters (void)

void reset (void)

void onEstimatedState (const double timestep, const IMC::EstimatedState *msg)

- Public Member Functions inherited from DUNE::Control::BasicAutopilot
 BasicAutopilot (const std::string &name, Tasks::Context &ctx, const uint32_t controllable_loops, const uint32_t required_loops)

virtual ~BasicAutopilot (void)

virtual void onResourceAcquisition (void)

virtual void onResourceRelease (void)

virtual void onEstimatedState (const double timestep, const IMC::EstimatedState *msg)=0

void consume (const IMC::EstimatedState *msg)

void consume (const IMC::DesiredZ *msg)

void consume (const IMC::DesiredPitch *msg)

void consume (const IMC::DesiredHeading *msg)

void consume (const IMC::DesiredHeadingRate *msg)

void consume (const IMC::ControlLoops *msg)

void consume (const IMC::DesiredVelocity *msg)

void onMain (void)

- Public Member Functions inherited from DUNE::Tasks::Task
 Task (const std::string &name, Context &context)

virtual ~Task (void)

const char * getName (void) const

const char * getSystemName (void) const

unsigned int getSystemId (void) const

unsigned int getEntityId (void) const

unsigned int resolveEntity (const std::string &label) const

std::string resolveEntity (unsigned int id) const

DebugLevel getDebugLevel (void) const

uint16_t getActivationTime (void) const

uint16_t getDeactivationTime (void) const

unsigned int resolveSystemName (const std::string &name) const

const char * resolveSystemId (unsigned int id) const

void loadConfig (void)

void setPriority (unsigned int value)

unsigned int getPriority (void) const

void inf (const char *format,...) DUNE_PRINTF_FORMAT(2

void void war (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void err (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void cri (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void debug (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void trace (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void void spew (const char *format,...) DUNE_PRINTF_FORMAT(2

void void void void void void void void dispatch (IMC::Message *msg, unsigned int flags=0)

void dispatch (IMC::Message &msg, unsigned int flags=0)

void dispatchReply (const IMC::Message &original, IMC::Message &msg, unsigned int flags=0)

void receive (const IMC::Message *msg)

void reserveEntities (void)

void resolveEntities (void)

void acquireResources (void)

void releaseResources (void)

void initializeResources (void)

void updateParameters (bool act_deact=true)

void writeParamsXML (std::ostream &os) const

const char * getEntityLabel (void) const

void setEntityLabel (const std::string &label)

- Public Member Functions inherited from DUNE::Tasks::AbstractTask
 AbstractTask (void)

virtual ~AbstractTask (void)

- Public Member Functions inherited from DUNE::Concurrency::Thread
 Thread (void)

virtual ~Thread (void)

int getProcessorUsage (void)

- Public Member Functions inherited from DUNE::Concurrency::Runnable
 Runnable (void)

virtual ~Runnable (void)

void start (void)

void stop (void)

void join (void)

void stopAndJoin (void)

void setPriority (Scheduler::Policy policy, unsigned priority)

unsigned getPriority (void)

State getState (void)

bool isCreated (void)

bool isStopping (void)

bool isRunning (void)

bool isStarting (void)

bool isDead (void)


Public Attributes

IMC::DesiredControl m_torques

IMC::DesiredHeadingRate m_hrate_ref

IMC::DesiredPitch m_pitch_ref

Arguments m_args


Additional Inherited Members

- Public Types inherited from DUNE::Concurrency::Runnable
- Protected Types inherited from DUNE::Control::BasicAutopilot
- Protected Member Functions inherited from DUNE::Control::BasicAutopilot
virtual void onAutopilotActivation (void)

virtual void onAutopilotDeactivation (void)

void onDeactivation (void)

void onActivation (void)

void signalBadYaw (const char *desc=DTR("yaw control mode %d not supported"))

void signalBadVertical (const char *desc=DTR("vertical control mode %d not supported"))

float getVerticalRef (void) const

VerticalMode getVerticalMode (void) const

float getYawRef (void) const

YawMode getYawMode (void) const

float getSurgeRef (void) const

float getSwayRef (void) const

float getBottomFollowDepth (void) const

- Protected Member Functions inherited from DUNE::Tasks::Task
void setEntityState (IMC::EntityState::StateEnum state, Status::Code code)

void setEntityState (IMC::EntityState::StateEnum state, const std::string &description)

IMC::EntityState::StateEnum getEntityState (void) const

unsigned int reserveEntity (const std::string &label)

template<typename E >
E * reserveEntity (const std::string &label)

Entities::BasicEntity * getLocalEntity (const std::string &label)

bool stopping (void)

bool isActive (void) const

bool isActivating (void) const

bool isDeactivating (void) const

void waitForMessages (double timeout)

void consumeMessages (void)

template<typename T >
Parameter & param (const std::string &name, T &var)

template<typename Y , typename T >
Parameter & param (const std::string &name, T &var)

template<typename T >
bool paramChanged (T &var)

void paramActive (Parameter::Scope def_scope, Parameter::Visibility def_visibility, bool def_value=false)

void setParamSectionEditor (const std::string &name)

template<typename M , typename T >
void bind (T *task_obj, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< uint32_t > &list)

template<typename T , typename M >
void bind (T *task_obj, const std::vector< uint32_t > &list, void(T::*consumer)(const M *)=&T::consume)

template<typename T >
void bind (T *task_obj, const std::vector< std::string > &list)

void requestActivation (void)

void requestDeactivation (void)

void activate (void)

void activationFailed (const std::string &reason)

void deactivate (void)

void deactivationFailed (const std::string &reason)

virtual bool onWriteParamsXML (std::ostream &os) const

virtual void onEntityReservation (void)

virtual void onEntityResolution (void)

virtual void onReportEntityState (void)

virtual void onRequestActivation (void)

virtual void onRequestDeactivation (void)

virtual void onQueryEntityParameters (const IMC::QueryEntityParameters *msg)

virtual void onSetEntityParameters (const IMC::SetEntityParameters *msg)

virtual void onPushEntityParameters (const IMC::PushEntityParameters *msg)

virtual void onPopEntityParameters (const IMC::PopEntityParameters *msg)

- Protected Member Functions inherited from DUNE::Concurrency::Thread
void startImpl (void)

void stopImpl (void)

void joinImpl (void)

void setPriorityImpl (Scheduler::Policy policy, unsigned priority)

unsigned getPriorityImpl (void)

- Protected Attributes inherited from DUNE::Tasks::Task
Context & m_ctx

std::vector< Entities::BasicEntity * > m_entities


Constructor & Destructor Documentation

Control::AUV::LMI::Task::Task ( const std::string &  name,
Tasks::Context &  ctx
)
inline

References Control::AUV::LMI::Arguments::depth_offset, Control::AUV::LMI::Arguments::force_pitch, Control::AUV::LMI::Arguments::k_gain, Control::AUV::LMI::Arguments::max_depth_error, Control::AUV::LMI::Arguments::max_fin_rot, Control::AUV::LMI::Arguments::max_pitch, Control::AUV::LMI::Arguments::max_pitch_act, Control::AUV::LMI::Arguments::roll_control_enabled, and Control::AUV::LMI::Arguments::use_depth_offset.

Member Function Documentation

void Control::AUV::LMI::Task::onEstimatedState ( const double  timestep,
const IMC::EstimatedState *  msg
)
inline

References Control::AUV::LMI::Arguments::depth_offset, Control::AUV::LMI::Arguments::force_pitch, Control::AUV::LMI::Arguments::k_gain, Control::AUV::LMI::Arguments::max_depth_error, Control::AUV::LMI::Arguments::max_fin_rot, Control::AUV::LMI::Arguments::max_pitch, Control::AUV::LMI::Arguments::max_pitch_act, Control::AUV::LMI::Arguments::roll_control_enabled, DUNE::Math::trimValue(), and Control::AUV::LMI::Arguments::use_depth_offset.

void Control::AUV::LMI::Task::onResourceInitialization ( void  )
inlinevirtual

Called when the task is instructed to initialize resources acquired previously or whose initialization depends on run-time parameters.

Reimplemented from DUNE::Control::BasicAutopilot.

void Control::AUV::LMI::Task::onUpdateParameters ( void  )
inlinevirtual

Called when the task is instructed to update its run-time parameters.

Derived classes that need to compute auxiliary values based on run-time parameters should override this function.

Reimplemented from DUNE::Tasks::Task.

References DUNE::Math::Matrix::columns(), Control::AUV::LMI::Arguments::k_gain, Control::AUV::LMI::Arguments::max_pitch, Control::AUV::LMI::Arguments::max_pitch_act, and DUNE::Math::Matrix::rows().

void Control::AUV::LMI::Task::reset ( void  )
inlinevirtual

Reset to initial values.

Reimplemented from DUNE::Control::BasicAutopilot.

Member Data Documentation

Arguments Control::AUV::LMI::Task::m_args

Task Arguments.

IMC::DesiredHeadingRate Control::AUV::LMI::Task::m_hrate_ref

Heading controller heading rate reference.

IMC::DesiredPitch Control::AUV::LMI::Task::m_pitch_ref

Depth controller pitch reference.

IMC::DesiredControl Control::AUV::LMI::Task::m_torques

Desired actuation torque vector.

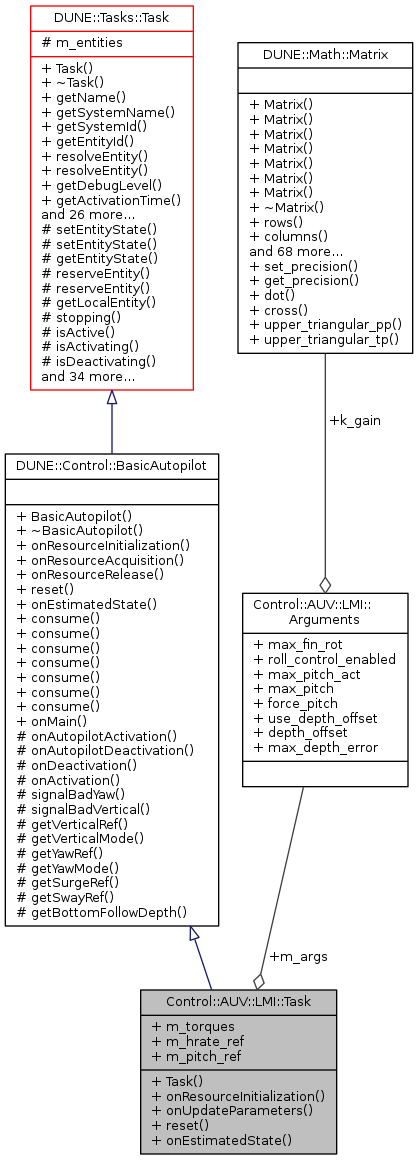

Collaboration diagram for Control::AUV::LMI::Task:
Collaboration graph
