DUNE::IMC::FormationMonitor Class Reference

Detailed Description

Formation Monitoring Data.

Public Member Functions

 FormationMonitor (void)

Messageclone (void) const

void clear (void)

bool fieldsEqual (const Message &msg__) const

int validate (void) const

uint8_t * serializeFields (uint8_t *bfr__) const

uint16_t deserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t reverseDeserializeFields (const uint8_t *bfr__, uint16_t size__)

uint16_t getId (void) const

const char * getName (void) const

unsigned getFixedSerializationSize (void) const

unsigned getVariableSerializationSize (void) const

void fieldsToJSON (std::ostream &os__, unsigned nindent__) const

- Public Member Functions inherited from DUNE::IMC::Message
 Message (void)

virtual ~Message (void)

double setTimeStamp (double ts)

double setTimeStamp (void)

double getTimeStamp (void) const

uint16_t getSource (void) const

void setSource (uint16_t src)

uint8_t getSourceEntity (void) const

void setSourceEntity (uint8_t src_ent)

uint16_t getDestination (void) const

void setDestination (uint16_t dst)

uint8_t getDestinationEntity (void) const

void setDestinationEntity (uint8_t dst_ent)

virtual uint16_t getSubId (void) const

virtual void setSubId (uint16_t subid)

virtual fp64_t getValueFP (void) const

virtual void setValueFP (fp64_t val)

unsigned getSerializationSize (void) const

unsigned getPayloadSerializationSize (void) const

void toJSON (std::ostream &os) const

void toText (std::ostream &os) const

bool operator== (const Message &other) const

bool operator!= (const Message &other) const


Static Public Member Functions

static uint16_t getIdStatic (void)


Public Attributes

fp32_t ax_cmd

fp32_t ay_cmd

fp32_t az_cmd

fp32_t ax_des

fp32_t ay_des

fp32_t az_des

fp32_t virt_err_x

fp32_t virt_err_y

fp32_t virt_err_z

fp32_t surf_fdbk_x

fp32_t surf_fdbk_y

fp32_t surf_fdbk_z

fp32_t surf_unkn_x

fp32_t surf_unkn_y

fp32_t surf_unkn_z

fp32_t ss_x

fp32_t ss_y

fp32_t ss_z

MessageList< RelativeStaterel_state


Protected Member Functions

void setTimeStampNested (double value__)

void setSourceNested (uint16_t value__)

void setSourceEntityNested (uint8_t value__)

void setDestinationNested (uint16_t value__)

void setDestinationEntityNested (uint8_t value__)


Additional Inherited Members

- Protected Attributes inherited from DUNE::IMC::Message
Header m_header


Constructor & Destructor Documentation

DUNE::IMC::FormationMonitor::FormationMonitor ( void  )

Member Function Documentation

void DUNE::IMC::FormationMonitor::clear ( void  )
virtual
Message* DUNE::IMC::FormationMonitor::clone ( void  ) const
inlinevirtual

Retrieve a copy of the message.

Returns
message copy.

Implements DUNE::IMC::Message.

References FormationMonitor().

uint16_t DUNE::IMC::FormationMonitor::deserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References ax_cmd, ax_des, ay_cmd, ay_des, az_cmd, az_des, DUNE::IMC::deserialize(), rel_state, ss_x, ss_y, ss_z, surf_fdbk_x, surf_fdbk_y, surf_fdbk_z, surf_unkn_x, surf_unkn_y, surf_unkn_z, virt_err_x, virt_err_y, and virt_err_z.

bool DUNE::IMC::FormationMonitor::fieldsEqual ( const Message other) const
virtual

Compare fields for equality.

Parameters
[in]othermessage to compare.
Returns
true if fields are equal, false otherwise.

Reimplemented from DUNE::IMC::Message.

References ax_cmd, ax_des, ay_cmd, ay_des, az_cmd, az_des, rel_state, ss_x, ss_y, ss_z, surf_fdbk_x, surf_fdbk_y, surf_fdbk_z, surf_unkn_x, surf_unkn_y, surf_unkn_z, virt_err_x, virt_err_y, and virt_err_z.

void DUNE::IMC::FormationMonitor::fieldsToJSON ( std::ostream &  os,
unsigned  indent_level
) const
virtual

Output the message fields (excluding header) in JSON format.

Parameters
osoutput stream.
indent_levelnumber of indentation spaces.

Reimplemented from DUNE::IMC::Message.

References ax_cmd, ax_des, ay_cmd, ay_des, az_cmd, az_des, rel_state, ss_x, ss_y, ss_z, surf_fdbk_x, surf_fdbk_y, surf_fdbk_z, surf_unkn_x, surf_unkn_y, surf_unkn_z, DUNE::IMC::toJSON(), virt_err_x, virt_err_y, and virt_err_z.

unsigned DUNE::IMC::FormationMonitor::getFixedSerializationSize ( void  ) const
inlinevirtual

Get the fixed amount of bytes required to properly serialize this message (variable length fields are not included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

uint16_t DUNE::IMC::FormationMonitor::getId ( void  ) const
inlinevirtual

Retrieve message's identification number.

Returns
message's identification number.

Implements DUNE::IMC::Message.

References getIdStatic().

static uint16_t DUNE::IMC::FormationMonitor::getIdStatic ( void  )
inlinestatic

Referenced by getId().

const char* DUNE::IMC::FormationMonitor::getName ( void  ) const
inlinevirtual

Retrieve message's name.

Returns
message's name.

Implements DUNE::IMC::Message.

unsigned DUNE::IMC::FormationMonitor::getVariableSerializationSize ( void  ) const
inlinevirtual

Get the variable amount of bytes required to properly serialize this message (only the variable fields are included).

Returns
amount of variable bytes required to serialize the message.

Reimplemented from DUNE::IMC::Message.

References rel_state.

uint16_t DUNE::IMC::FormationMonitor::reverseDeserializeFields ( const uint8_t *  bfr,
uint16_t  len
)
virtual

Deserialize message fields from a packet, swapping the byte order.

Parameters
bfrstream of bytes (packet)
lenlength of the byte stream.
Returns
number of bytes processed.

Implements DUNE::IMC::Message.

References ax_cmd, ax_des, ay_cmd, ay_des, az_cmd, az_des, rel_state, DUNE::IMC::reverseDeserialize(), ss_x, ss_y, ss_z, surf_fdbk_x, surf_fdbk_y, surf_fdbk_z, surf_unkn_x, surf_unkn_y, surf_unkn_z, virt_err_x, virt_err_y, and virt_err_z.

uint8_t * DUNE::IMC::FormationMonitor::serializeFields ( uint8_t *  bfr__) const
virtual
void DUNE::IMC::FormationMonitor::setDestinationEntityNested ( uint8_t  value)
protectedvirtual

Set the destination entity of nested messages.

Parameters
[in]valuedestination entity.

Reimplemented from DUNE::IMC::Message.

References rel_state.

void DUNE::IMC::FormationMonitor::setDestinationNested ( uint16_t  value)
protectedvirtual

Set the destination address of nested messages.

Parameters
[in]valuedestination address.

Reimplemented from DUNE::IMC::Message.

References rel_state.

void DUNE::IMC::FormationMonitor::setSourceEntityNested ( uint8_t  value)
protectedvirtual

Set the source entity of nested messages.

Parameters
[in]valuesource entity.

Reimplemented from DUNE::IMC::Message.

References rel_state.

void DUNE::IMC::FormationMonitor::setSourceNested ( uint16_t  value)
protectedvirtual

Set the source address of nested messages.

Parameters
[in]valuesource address.

Reimplemented from DUNE::IMC::Message.

References rel_state.

void DUNE::IMC::FormationMonitor::setTimeStampNested ( double  value)
protectedvirtual

Set the timestamp of nested messages.

Parameters
[in]valuetimestamp.

Reimplemented from DUNE::IMC::Message.

References rel_state.

int DUNE::IMC::FormationMonitor::validate ( void  ) const
virtual

Validate the message's contents.

Returns
negative value in case of a valid message or a positive value indicating the position of the invalid message field.

Implements DUNE::IMC::Message.

Member Data Documentation

fp32_t DUNE::IMC::FormationMonitor::ax_cmd
fp32_t DUNE::IMC::FormationMonitor::ax_des
fp32_t DUNE::IMC::FormationMonitor::ay_cmd
fp32_t DUNE::IMC::FormationMonitor::ay_des
fp32_t DUNE::IMC::FormationMonitor::az_cmd
fp32_t DUNE::IMC::FormationMonitor::az_des
fp32_t DUNE::IMC::FormationMonitor::ss_x

X Convergence Deviation (North).

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationMonitor::ss_y
fp32_t DUNE::IMC::FormationMonitor::ss_z
fp32_t DUNE::IMC::FormationMonitor::surf_fdbk_x

X Sliding Surface Feedback (North).

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationMonitor::surf_fdbk_y

Y Sliding Surface Feedback (East).

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationMonitor::surf_fdbk_z

Z Sliding Surface Feedback (Down).

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationMonitor::surf_unkn_x

X Uncertainty Compensation (North).

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationMonitor::surf_unkn_y

Y Uncertainty Compensation (East).

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationMonitor::surf_unkn_z

Z Uncertainty Compensation (Down).

Referenced by clear(), deserializeFields(), fieldsEqual(), fieldsToJSON(), reverseDeserializeFields(), and serializeFields().

fp32_t DUNE::IMC::FormationMonitor::virt_err_x
fp32_t DUNE::IMC::FormationMonitor::virt_err_y
fp32_t DUNE::IMC::FormationMonitor::virt_err_z

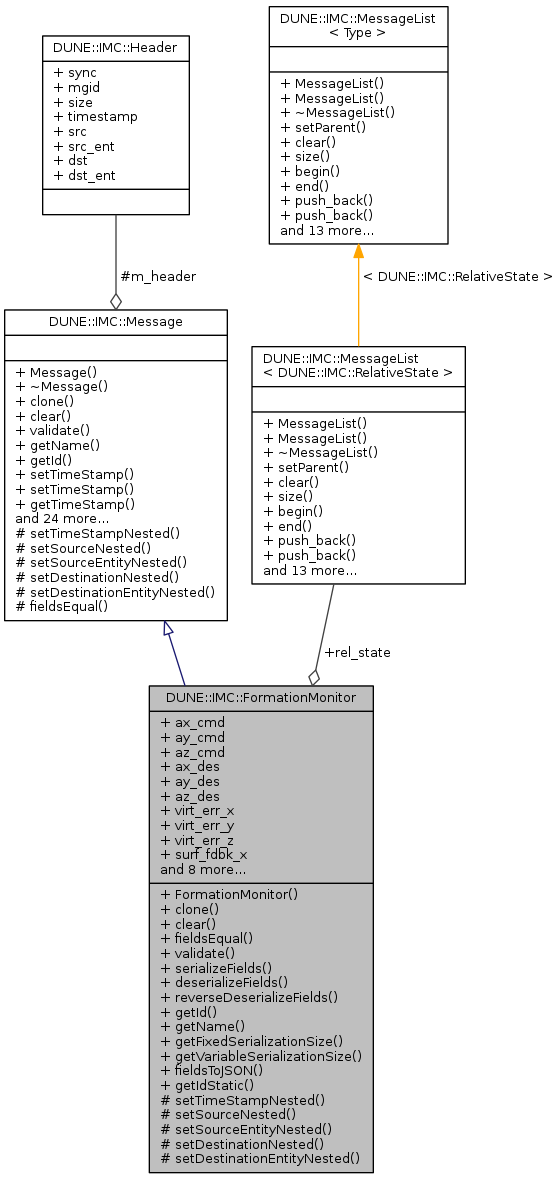

Collaboration diagram for DUNE::IMC::FormationMonitor:
Collaboration graph
